Product Image

  ¡@ Product Model: SM-52

¡@
TAKSTAR SM-52
¡Pprofessional condenser microphone
¡Pvapor-deposited gold diaphragm with the cardioid polar pattern
¡Pcapability of processing the high sound input easily
¡Plow self-noise and high output
¡Pswitchable 10dB built-in (nominal) pad and low frequency attenuation to handle very high sound pressure levels with ease and reduce the pickup of low-frequency
ambient noise (i.e.on-stage shows)
¡Pclassic and attractive surface plated Zinc-die casting exterior to guarantee
comfortable and noiseless handling
¡P5/8' thread swivel mount at the tail---to enable the connection to all kinds of shock mounts
¡Ppacked in an ABS carrying case with shaped sponge inside
applications:
professional stage performances, studio recording, broadcasting stations, musical instruments recording
¡@


¡@
Element: Pressure Gradient Transducer
Polar Pattern: Uni-directional

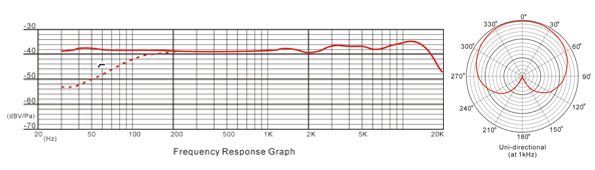

Frequency Response: 20Hz-20kHz
Sensitivity: -37dB¡Ó2dB (0dB=1V/Pa at 1kHz)
Output Impedance: 100£[¡Ó30% (at 1kHz)
Load Impedance: ≥1000£[
Self Noise: 16dB A (IEC 581-5)
Max. Input SPL: 132dB (at 1kHz ≤1% T.H.D)
S/N Ratio: 78dB
Low Frequency Attenuation: 80Hz/oct 12dB
Phantom Power Requirement: 48V Phantom Power
