Product Image

Product Model: PCM-6100

TAKSTAR PCM-6100 is a professional condenser microphone for musical instruments. -back electrets condenser capsule with a cardioid pickup pattern→ to achieve accurate, uncolored reproduction of the sound, as well as exceptionally high sensitivity -effective reduction of unwanted noise and feedback -slim and lightweight copper and Zinc-die casting housing -back electret condenser element powered either internally by DC 9V-52V phantom power -standard XLR connector→ to match all kinds of audio equipment applications: acoustic projects, orchestral instruments, pianos, etc.

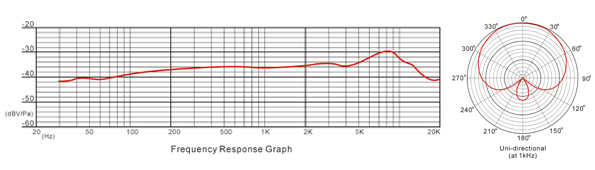

Element: Back Electret Condenser Polar Pattern: Uni-directional Frequency Response: 30Hz-18kHz Sensitivity: -38dB±3dB(0dB=1V/Pa at 1kHz) Output Impedance: 100Ω±30%(at 1kHz) Max. Input SPL: 135dB(at 1kHz ≤1% T.H.D) Self Noise: 24dB A S/N Ratio: 70dB Phantom Power Requirement: 9V-52V DC phantom
